calc-extension

The extension strives to be useful for everybody quickly needing
brief or mid-long calculations: in daily “browser” life, as a
mathematician, or as a programmer - there is support for all needs.

Formulas can be entered in the typical mathematician's or programmer's syntax - both is understood. There is also support for lengthy sessions (saving/restoring, exporting to clipboard, etc).

The original motivation was to experiment with a Pratt parser.
There is already a much richer expression syntax than in most languages
(implicit multiplication signs, no braces necessary for function calls),
and it would be simple to extend the syntax to a more full-blown “language”.
(In fact, earlier versions of calc-extension had a simpler syntax.
Readers interested in the parser implementation can check data/js/parser.js).

After installing calc-extension, it can be used as follows.

Click the calc-extension symbol 1+2.

Then a page opens where you can enter a formula (see below) which will be
calculated when you press the solver button (~>).
(There is an option to use the enter key instead if you prefer.)
The result is then shown and you can enter the next formula.
You can also go back to an earlier entered formula and “recalculate” it
(e.g. after you modified some variables).
To remove a formula from your list, simply remove the main formula text
and press the solver button.

A simple formula is a usual mathematical expression which consists of numbers, the usual operators + - * / and braces ( ).
As usual in mathematics (though not in most computer languages),
it is possible to omit the multiplication sign.
However:

Be aware that x means the variable x and not a multiplication sign…!

For multiplication use instead one of the symbols * · × or simply omit it (a space can be used to separate adjacent tokens).
The division symbol is / or :.

Numbers have the usual floating-point format, e.g. 17 0.1 1.2e-3 or they can be octal or hexadecimal: For an octal number start with 0, for a hexadecimal number start with 0x.

There are further operators which can be used in expressions:

There are also some mathematical functions available.
Note that functions bind stronger than all binary operators, i.e. sin π/2 is the same as sin(π)/2 but differs from sin(π/2).

Furthermore, there are constants available:


Finally, it is possible to define variables with e.g. a=... and to use them.
Variable names must only consist of English characters, numbers, or _.

The whole syntax and operator precedence is inspired by javascript.
However, the following things are new.

There is a special variable name # which always refers to the result of
the last (succesful) calculation.

There are also special sequences which can occur anywhere in an expression
and which cause options to switch (you can also switch them by the mouse).
To modify options more permanently (also for future sessions even across
browser restarts), you have to set them in the preferences window.


The actual calculation of the functions and number conversion occurs
by javascript calls. Therefore, mathematical properties like available
precision, error messages, number limitations, and possible inaccuracies
(and possibly even bugs) are inherited from the javascript interpreter.

Example session

Permissions

The extension requires the storage permission in order to store options/accordion state and possibly a session on local storage.

Languages

Currently, the following languages are supported:

Install

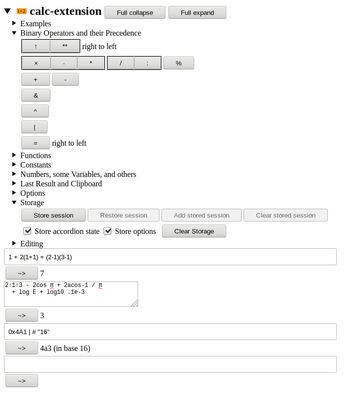

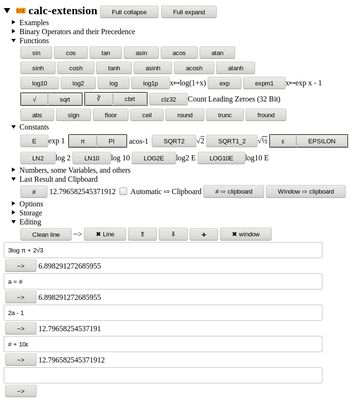

Example session showing some features Calculation with variables and last result
